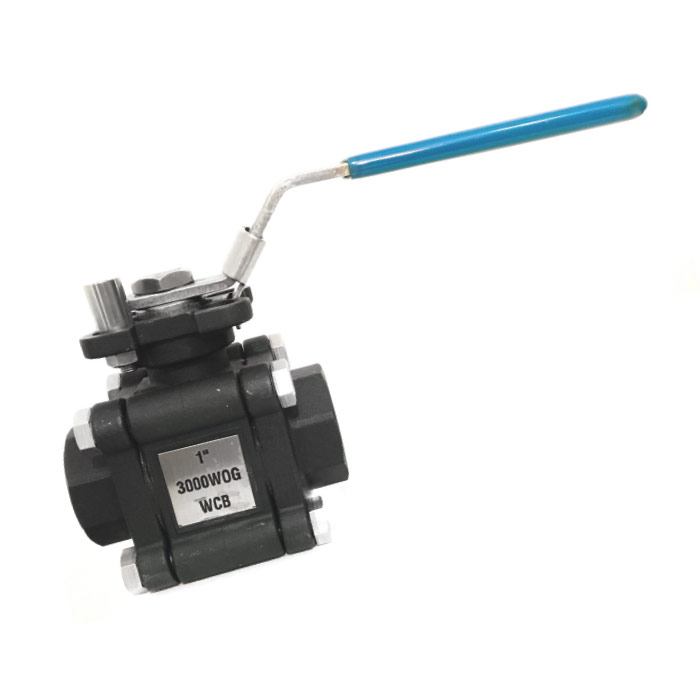

33KM TYPE

33KM TYPE

SIZE: ¼” – 4”
3 PIECE,FULL PORT FULL PORT, ISO 5211 MOUNTING PAD
SCREWED / BUTT & SOCKETWELD END

[dt_gap height=”10″ /]

SINVESTMENT CASTING BODY & CAPS

DIRECT MOUNTING PAD
ASTM A 351 – CF8M (DIN 1.4408)
ASTM A 351 – CF8 (DIN 1.4301)
ASTM A 216 – WCB (DIN 1.0619)

FEATURES:

– PIPE THREAD IN ACCORDANCE WITH:

  • ANSI B2.1(BASIC STD FOR STEEL PIPE THREADS)
  • ANSI B1.20 (NPTF)
  • BS21:1973
  • DIN259/2999
  • ISO228

– BLOW-OUT PROOF STEM
* (¼” – 2”) 3000 PSI (W.O.G)
* (2-1/3” – 4”) 2000PSI (W.O.G)
– FULL PORT
– 1000 PSI W.O.G
– LUG BODY
– DIRECT MOUNTING PAD ISO 5211
– LOCKING DEVICE
* MTR EN 10204-3.1
